Building Review組裝報告 : Xpress Execute XM1S 1/10 4WD Mini Touring Car Kit / 1:10 4驅M車

Posted by

期待己久! Xpress終於推出套裝四輪驅動(4WD)M車, 從此多一個選擇! 不一定要買日本Spice Kit改裝YOKOMO / XRAY成四驅M車, Xpress XM1S車架規格為現有高階版本Execute XQ1 作設計藍本再縮少成M車Size, 除了M車專用件其它零件大部份與同系列XQ1S共用, 部份零件可升級成XQ1金屬件 !

較為現代設計的四輪驅動M車, 在早十年也有兩家香港牌子曾經推出, 有TOP Sabre Mini以及ATOMIC VM2, 可是現在都己經停產了以及牌子也己沒有再出1:10 RC車架, 看來生產RC車架是一條不歸路, Xpress近來不斷推出新車架不知它能撐到多久放棄生產RC, 所以有就快買隨時可能變成絕版車, 哈哈!   餘下撐著生產1:10車架香港品牌(Roche, 3racing)…..

講開有段故, 全球首部四輛驅動(4WD)M車
   Xpress與四驅M車歷史息息相關, 1994年日本田宮模型Tamiya因為Mini Cooper車殼尺寸原因而設計一部210mm輪距前輪驅動M車, 車架型號M-01.

在96年2月Xpress推出了全球首部量產四輛驅動(4WD)M車, 210mm輪距型號為962, 走高性能路線, 在2018年9月Xpress再次重新設計四輛驅動(4WD)Mini車架XM1S(不知廠方內部型號是否叫189?), 同樣為210mm輪距四輪驅動.

現代車架設計與早期設計分別
車架佈局與早10年的雙皮帶設計看似相約, 實際上車架重心是按現在更輕量的鋰電池以及電子設備佈局設計, 相比早十多年前Ni-Mh電池年代車架使用現代鋰電池左右肯定不平衡, 加上標準配備齒輪差速, 懸浮Servo座加雙水撥轉向架設計等等現代車架設計都有加入, 內齒輪比例也是公認最好的1.9比例, 一件成形波箱也是Xpress特色.

香港代理定價 HKD780

官方宣傳片

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm150
輪闊: 160mm (前), 162mm(後) 輪距: 210mm

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm30

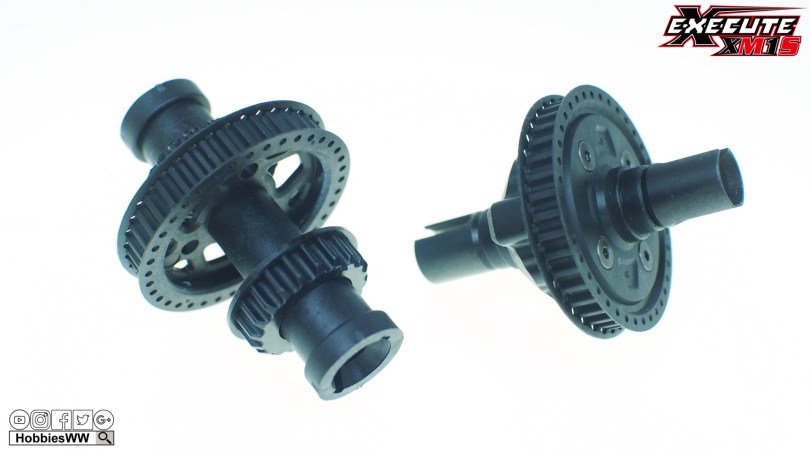

標準前直軸尾配備齒輪差速

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm48
內齒輪比例也是公認最好的1.9比例

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm58
雙水撥轉向架設計, 反應更平均

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm159

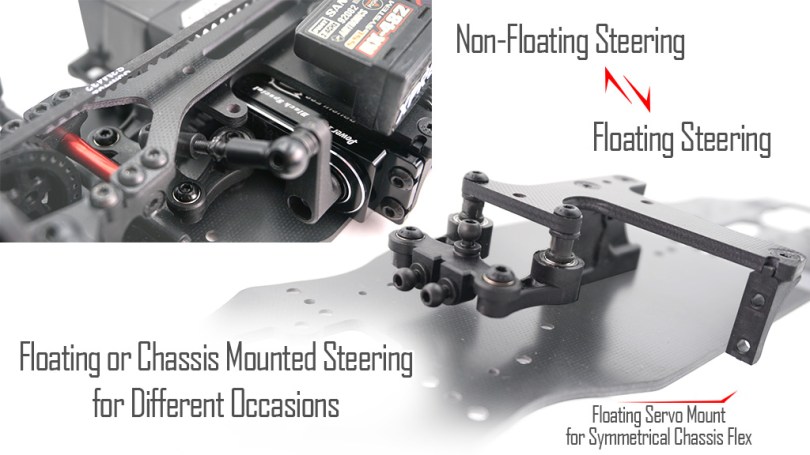

懸浮Servo座

OLYMPUS DIGITAL CAMERA

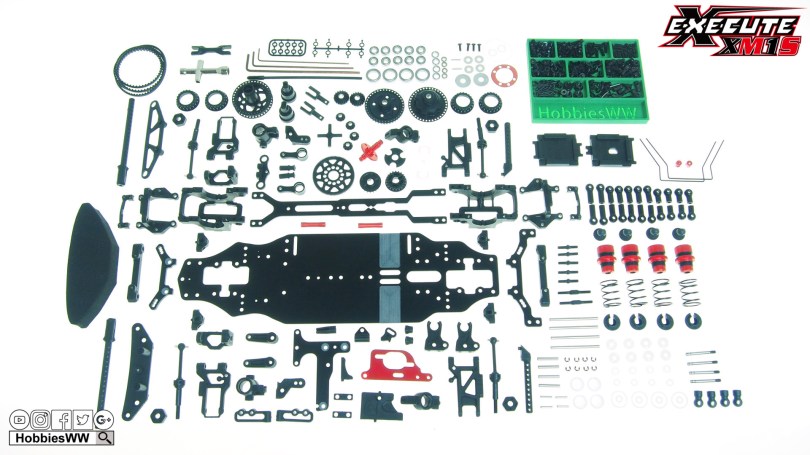

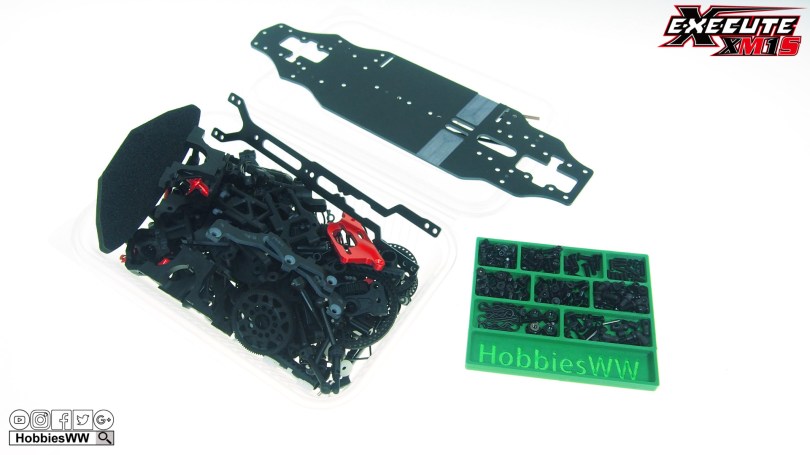

Xpress Execute XM1S 攤開圖

OLYMPUS DIGITAL CAMERA
唉…影完相! 高手向砌車方法……………….包裝袋有分編號, 大家不要模仿!

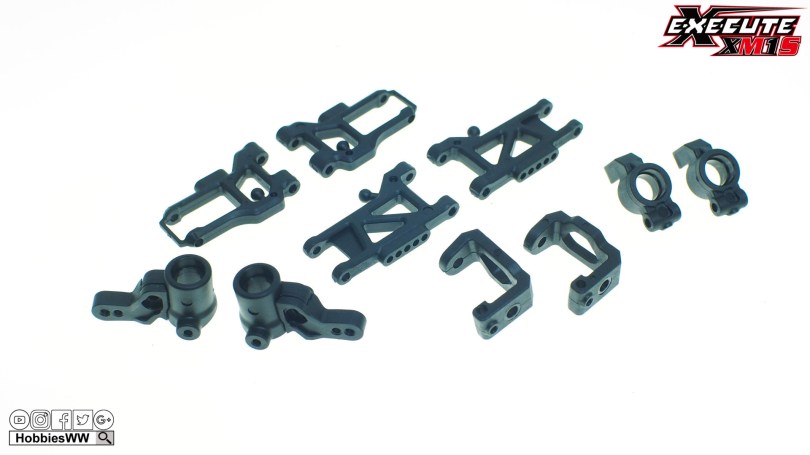

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm1全新設計M車規格搖臂, 改裝M仔又多個選擇

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm2
波箱, 前臂碼, 後臂碼規格是XQ1S / XQ1

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm5
XM1S規格前後防傾桿以及大減速齒輪

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm6
跟車有”膠丫叉”+”波頭扣”, 扭拉桿方便很多

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm7
因為有”膠丫叉”, 組裝後拉桿像新一樣沒有甩色

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm8
1:1拉桿圖方便對照

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm10

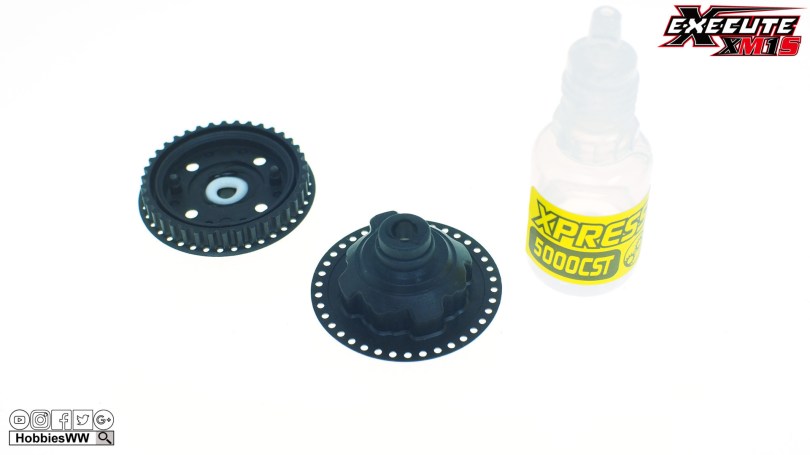

車尾牙差(齒輪差速)配5000Cst差速油!

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm11

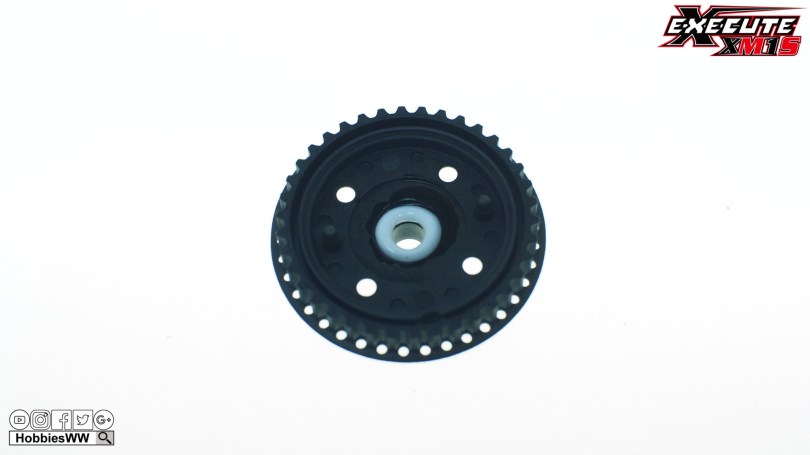

組裝差速時, 在封油白O-Ring處先塗上差速油作潤滑作用
Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm12
O-Ring後面也塗上差速油作潤滑

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm13
差速齒內部轉動零件, 再仔細檢查水口必須完全移除, 避免差速轉動不順影響攻灣

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm14

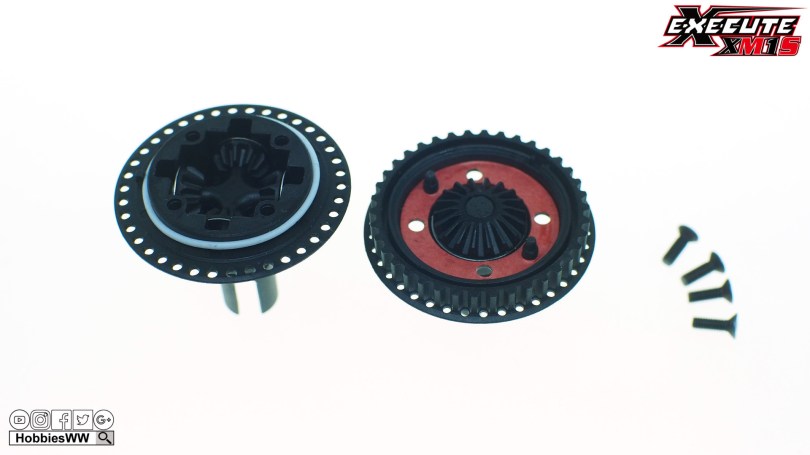

封油O-Ring安裝位置經常有人裝錯, 圖為正確位置

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm15筆者習慣先不入差速油, “乾砌一次”確定差速轉動暢順,否則入油後發覺有問題是一個災難! 如發覺有卡住感覺, 多數是水口未完全移除(包括十字PIN水口也要注意), 也有少部份情況扭螺絲死力扭過緊, 令差速殼輕微變形!

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm19
牙差建議入法

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm16
按說明書建議, 使用重量作油量參考

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm17

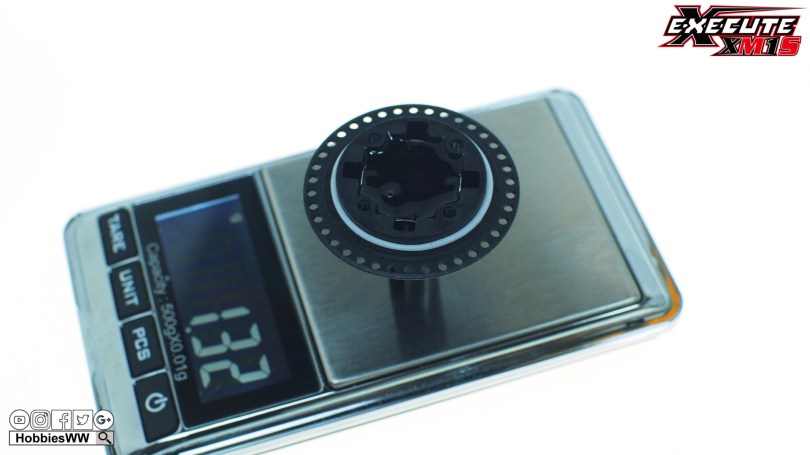

油量為1.32g, 差速先放一邊, 待差速油完全浸泡每一角落

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm18
原差速重12.41g

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm23開始處理啤令

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm20
筆者習慣把啤令原裝油脂清洗會更加暢順, 當然不清洗也OK !

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm21

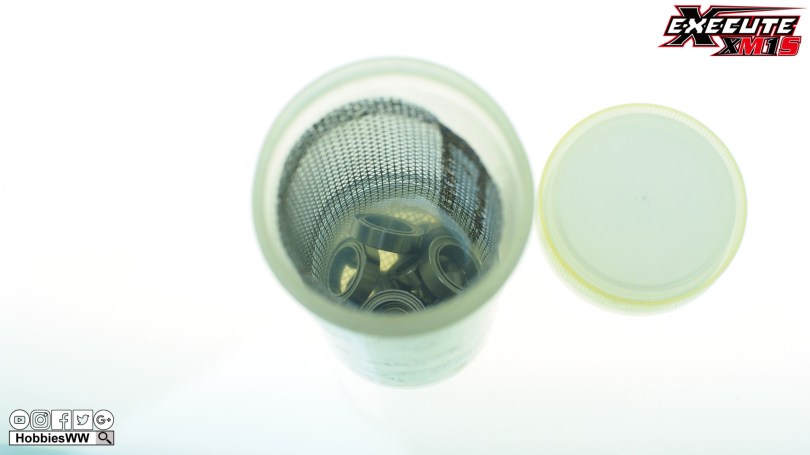

使用洗啤令樽再加入去油劑搖1~2分鐘, 浸泡10分鐘, 小心去油劑氣體澎漲令啤令樽蓋彈開 !

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm22
取出啤令自然風乾5分鐘以上

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm26
風乾後加入模型啤令專用油, YR綠色油質地較黏, 十分適合啤令使用

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm27
加入充裕份量, 啤令備用

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm24

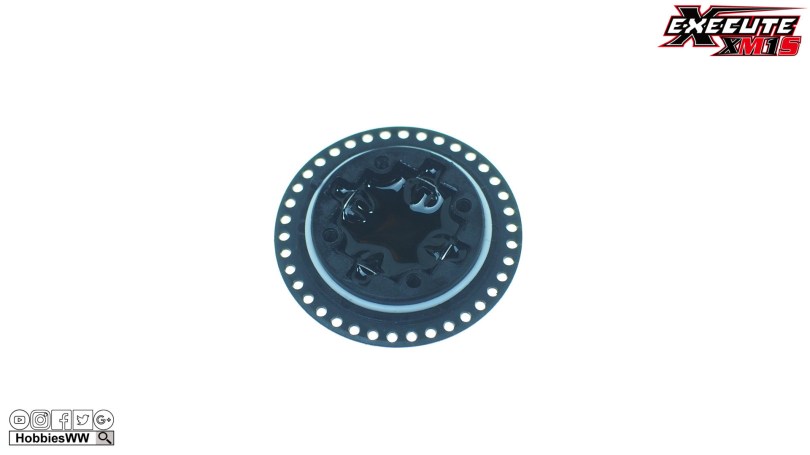

回到差速, 差速油己浸透內裡空間

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm25
由於之前差速殼己扭過一次螺絲,為避免滑牙, 重新扭入差速螺絲前首先尋回舊牙紋, 必須先逆時針方向轉動直至螺絲”答”一聲, 代表在牙紋起始位置再順時針扭緊

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm30

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm33
傳動中Pulley, PIN 為3x12mm

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm32

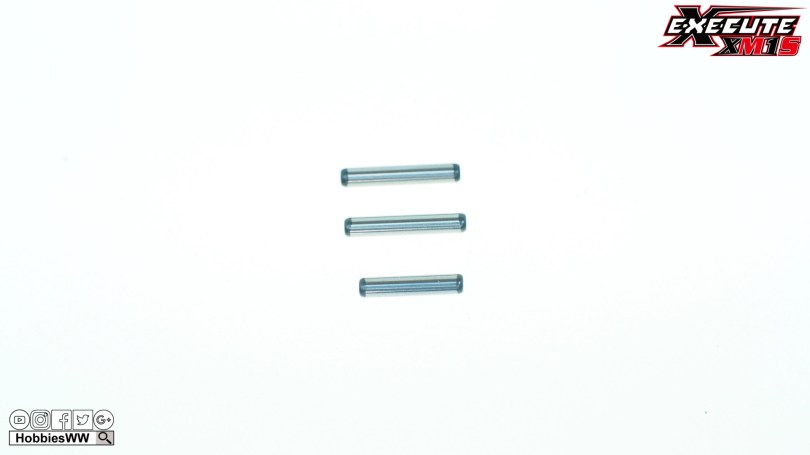

注意PIN有兩種長度, 分別為3x10mm 以及 3x12mm

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm34

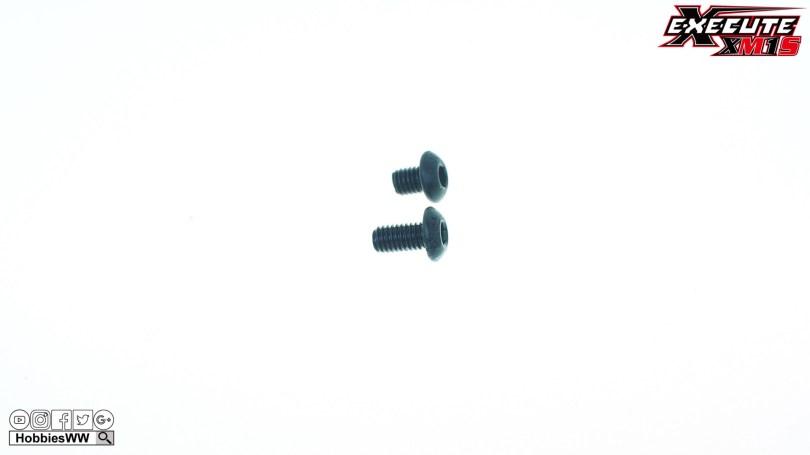

傳動中Pulley, 使用最短的M3x4mm圓頭螺絲

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm35
傳動中Pulley完成

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm36
XM1S雖然是膠轉向, 但尺寸是與與同廠頂級版本XQ1相同, 也是啤令轉向

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm37

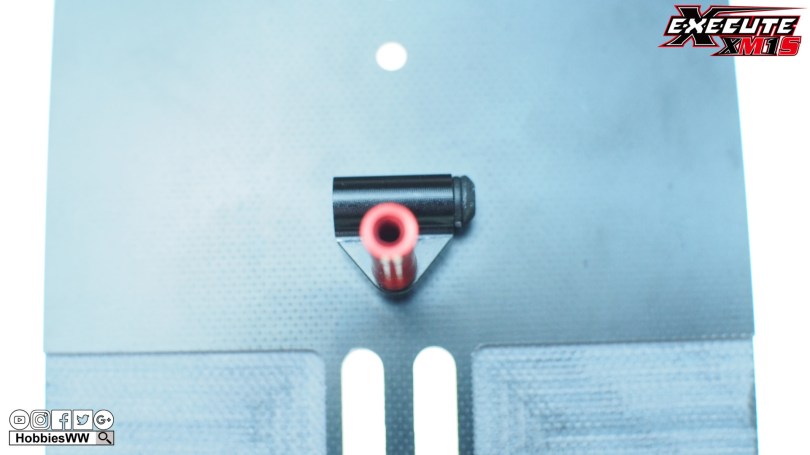

開始車架組裝, 先裝上Motor座柱

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm38
注意左右要分中

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm39
再裝上Motor座主要部份, Motor座為鋁合金相當厚料, 有助散熱!

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm40

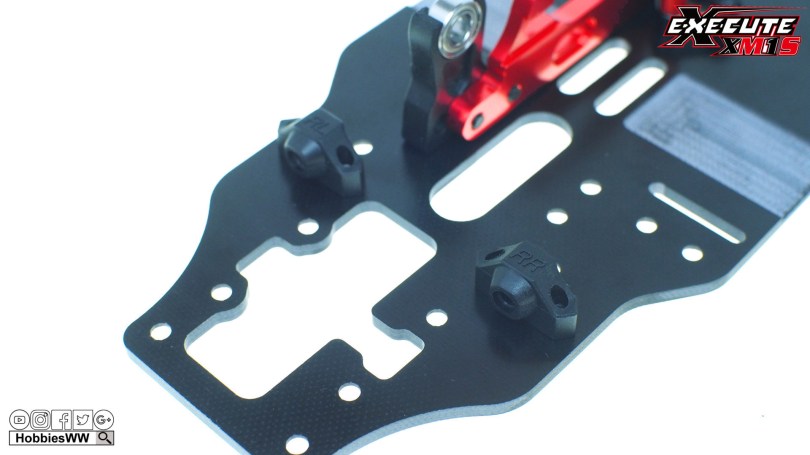

車尾分體臂碼處

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm41
車頭分體臂碼處

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm42

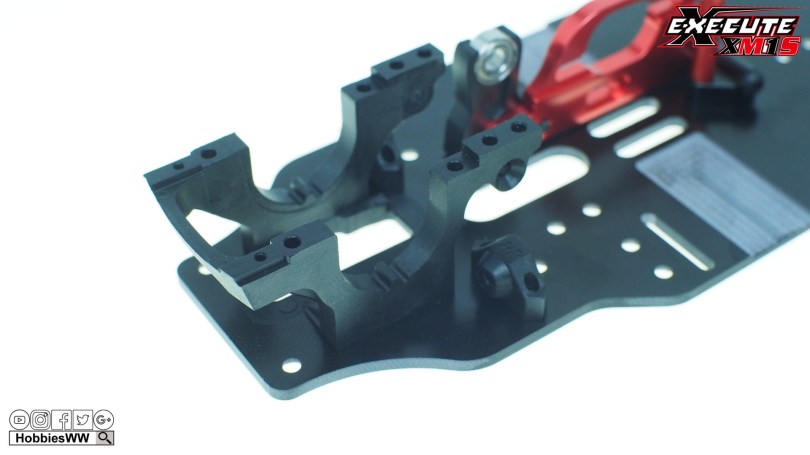

一體成型膠波箱, 暫時只有Xpress XQ1, XM1系列獨有

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm43

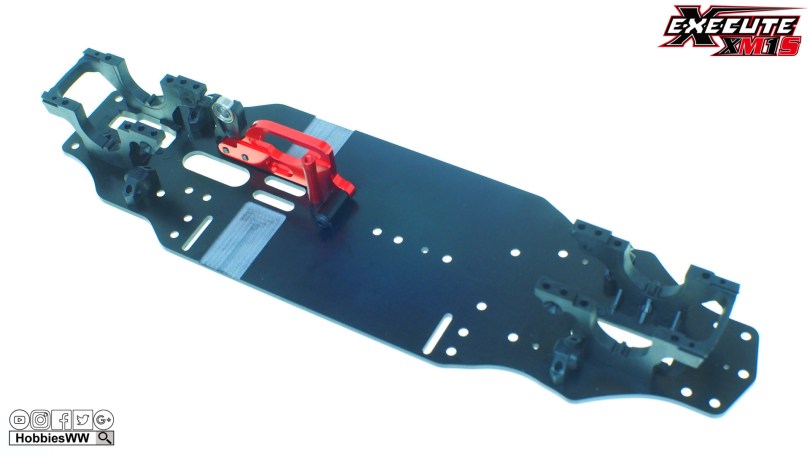

頭尾波箱, Motor座完成

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm44
開始裝上傳動部份

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm45
傳動部份近鏡

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm46
裝上傳動後
Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm47
車頭直軸部份

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm48
車尾差速部份

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm49

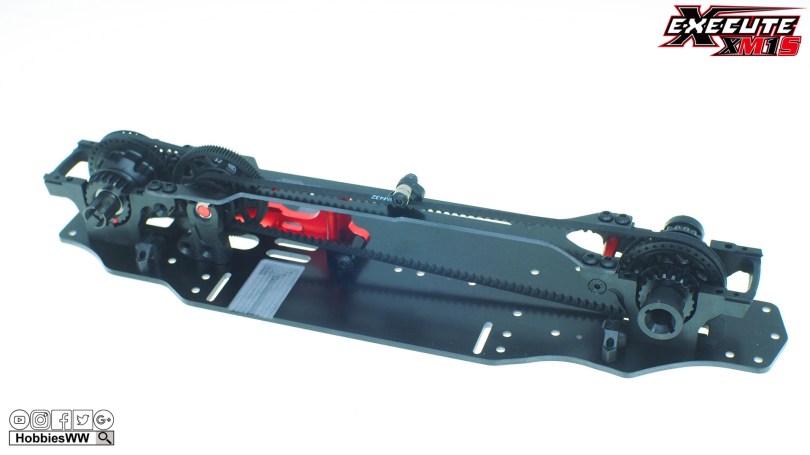

裝上二樓板

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm50
頭皮帶頂裝在二樓板上

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm51
圖為車尾偏心輪用作調教鬆緊度, 向前移一格令皮帶稍鬆, 暢順度提高

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm52
圖為車頭偏心輪用作調教鬆緊度, 向後移一格令皮帶稍鬆, 暢順度提高

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm55
轉向柱安裝, 有升級件XP-10112鋁柱選擇

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm56

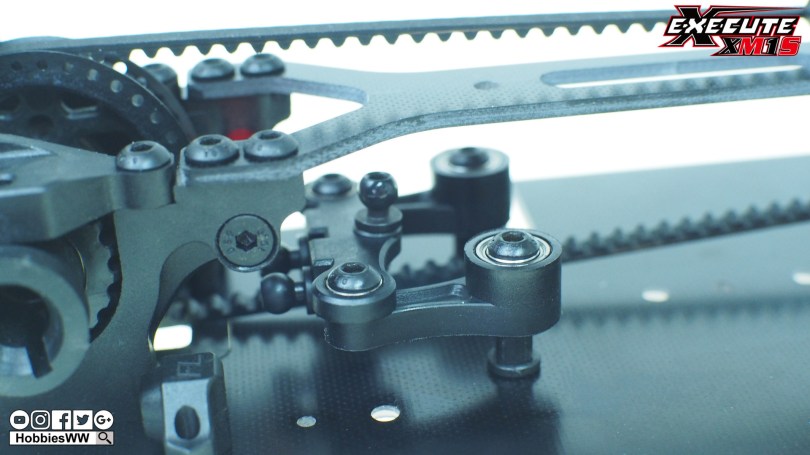

轉向部份按說明書安裝Non-Floating位置

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm57Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm59
頭轉向杯可換臂, 預計將有Option推出

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm60Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm29
裝上搖臂PIN之前, 預先扭上機米令膠件產生螺絲紋, 膠件更耐用不易”撻牙”

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm61

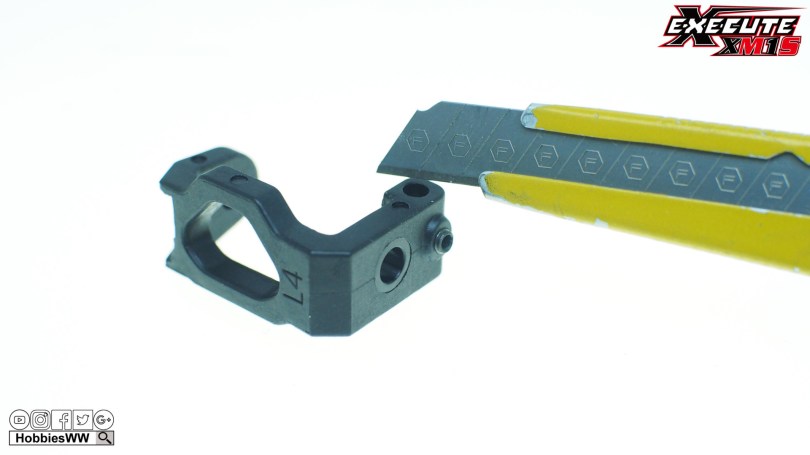

C座膠件配合搖臂沒有虛位是好事, 想令搖臂順暢一點, 用介刀輕微打磨

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm62
向前推, 打磨程度視符自己心水, 基本上沒有虛位又可自由轉動為好

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm63
打磨前

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm64
打磨後

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm65
扭上DownStop機米

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm66Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm67Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm68Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm69

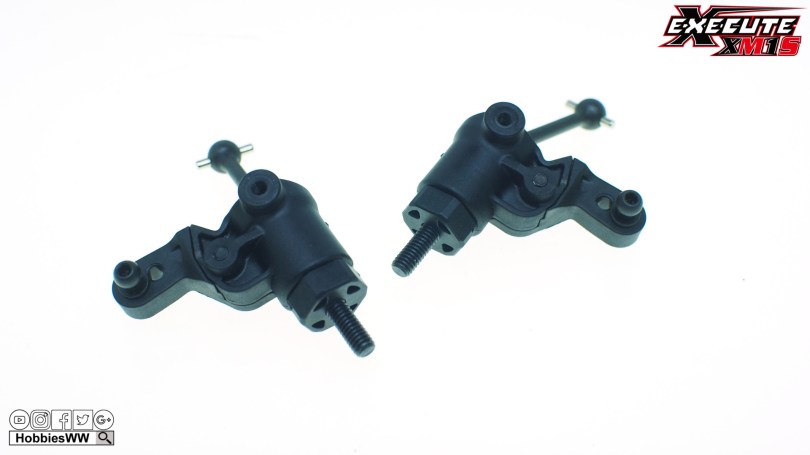

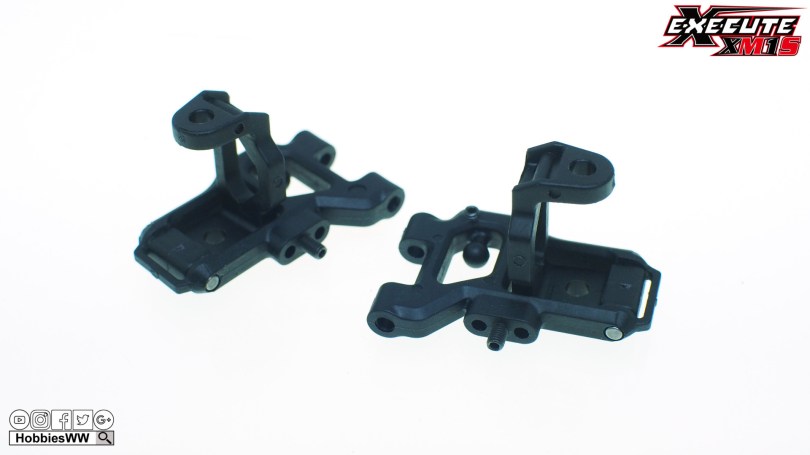

轉向杯扭上頂波子以及底固定螺絲時注意垂直度, 令轉向杯暢順轉動

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm70
按說明書裝上搖臂介子

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm71Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm72
裝上頭臂碼

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm73
注意全車正反牙拉桿同一方向, 方便日後調教

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm74
注意全車正反牙拉桿同一方向, 方便日後調教

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm75
尾杯也作適度打磨, 沒有虛位又可自由轉動為好

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm76
打磨後

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm77Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm78按說明書裝上搖臂介子

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm79Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm80

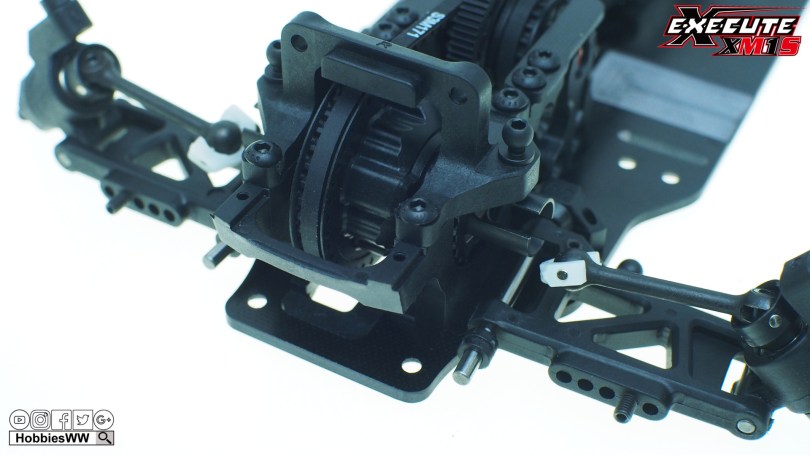

裝上尾臂碼

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm81
裝上尾Roll Bar
Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm82

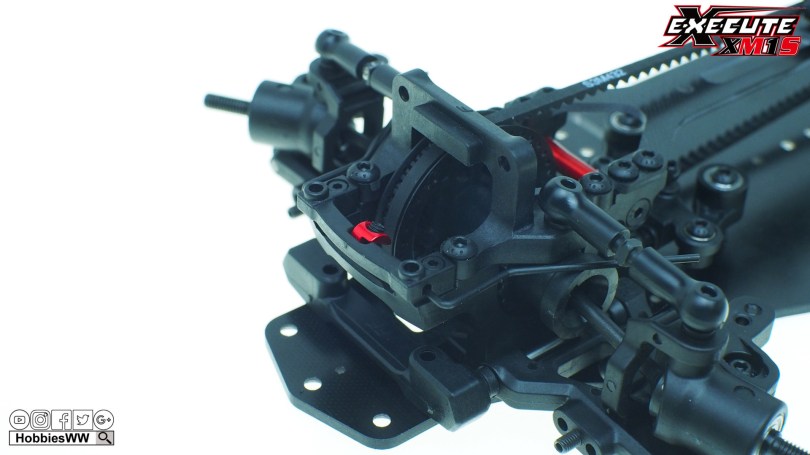

裝上前Roll Bar

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm83

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm84
機米用作校正虛位, 機米剛好貼到Roll Bar又不能夾死影響轉動

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm93

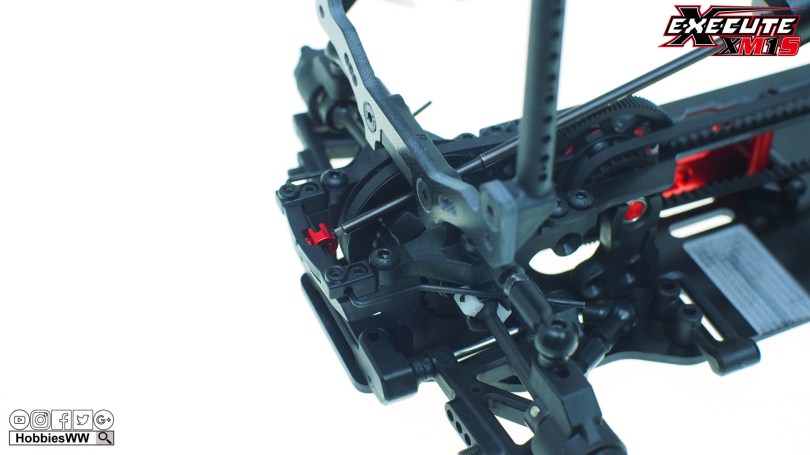

Roll Bar定位機米方向如圖, 不會卡住Roll Bar轉動

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm94Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm95
檢查Roll Bar左右力量是否平等, 如相差太遠拆出Roll Bar放到平面檢查Roll Bar是否平

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm96Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm85

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm86
車尾油壓板

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm87

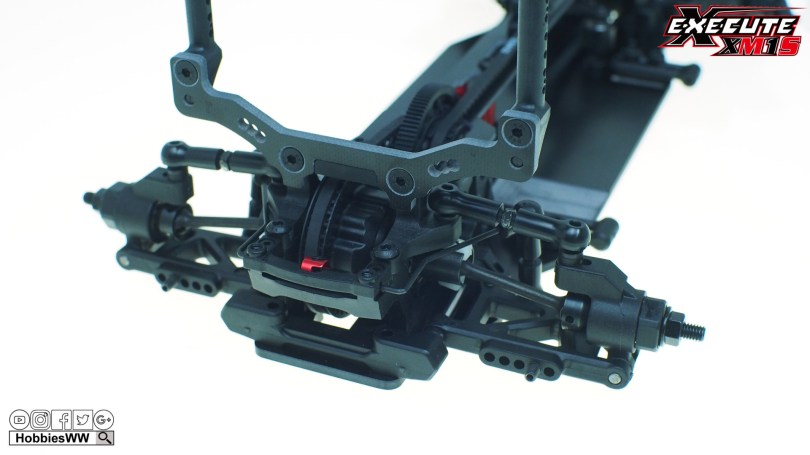

裝上車尾油壓板

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm88

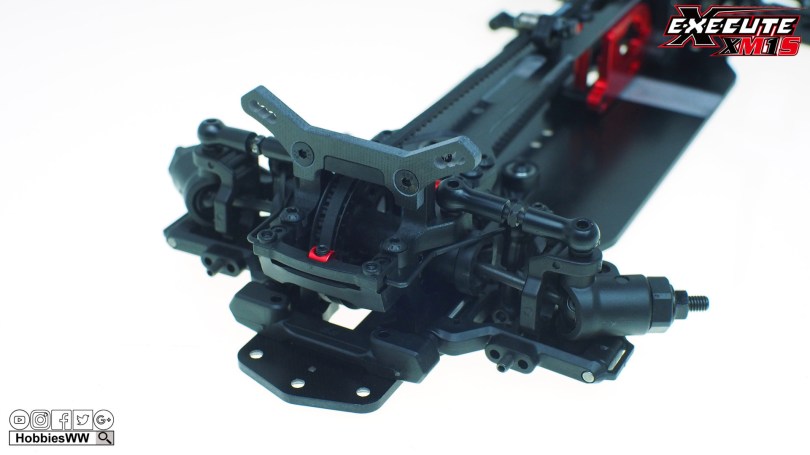

裝上車頭油壓板

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm88Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm89

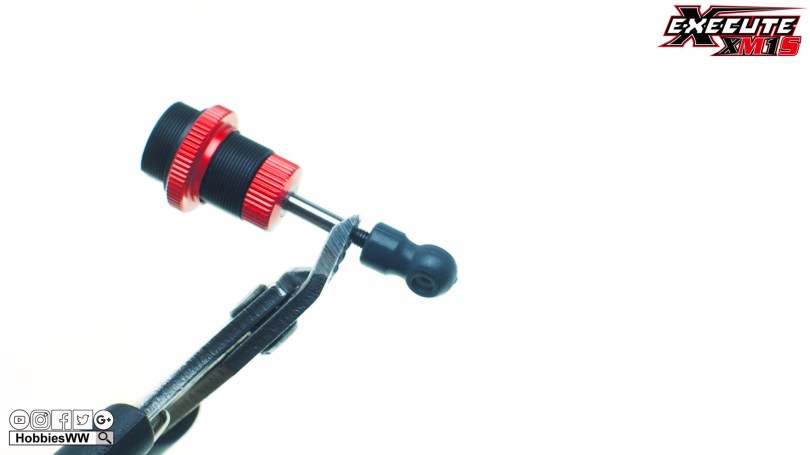

組裝油壓好幫手, 舊剪鉗夾住油壓桿扭進波頭

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm90Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm91

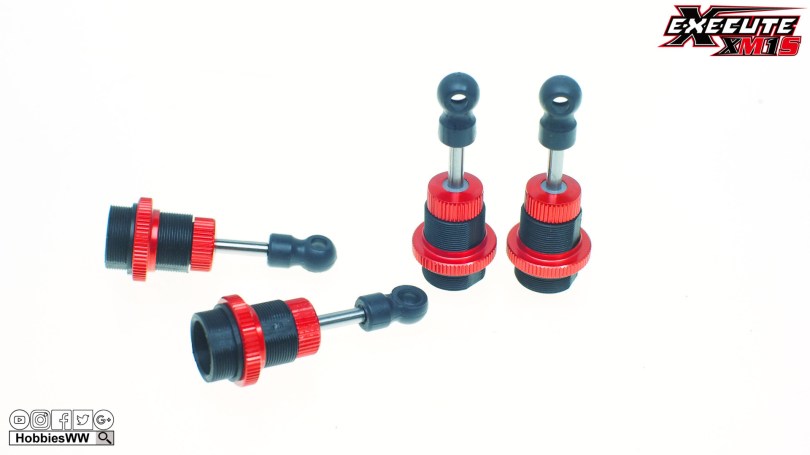

注入油壓油

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm92

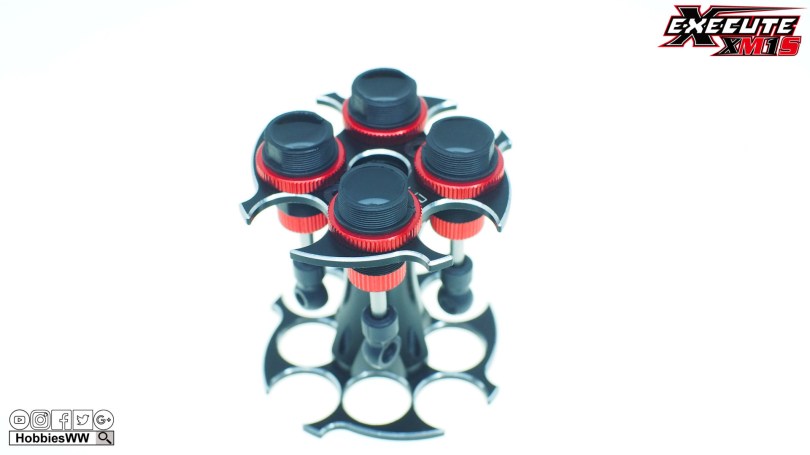

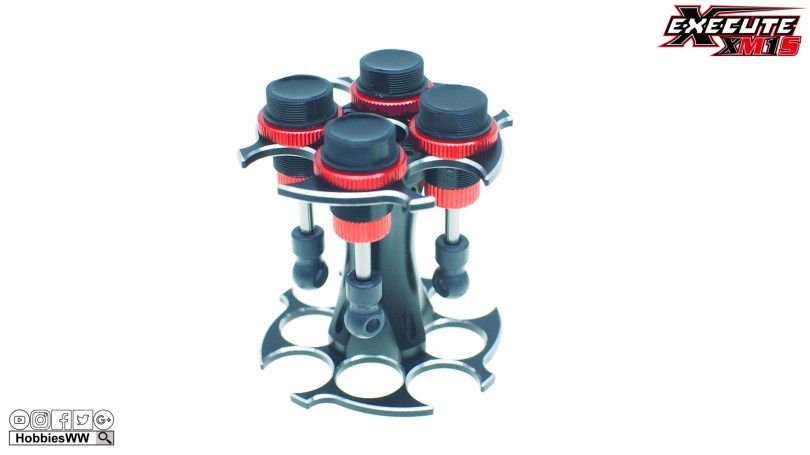

油壓架為Yeah Racing #YA-0524, 放著直至氣泡全部離開筒內

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm97
油壓組裝完成

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm98
左面為自製記號, 方便日後調教車高

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm99
三角銼刀打磨油壓托記號

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm100Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm101Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm102Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm103Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm104Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm105Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm106Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm107Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm108Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm109Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm110Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm111Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm112Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm113Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm114Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm115Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm116Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm117Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm118Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm119Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm120Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm121Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm122Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm123Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm124Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm125Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm126Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm127Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm128

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm129

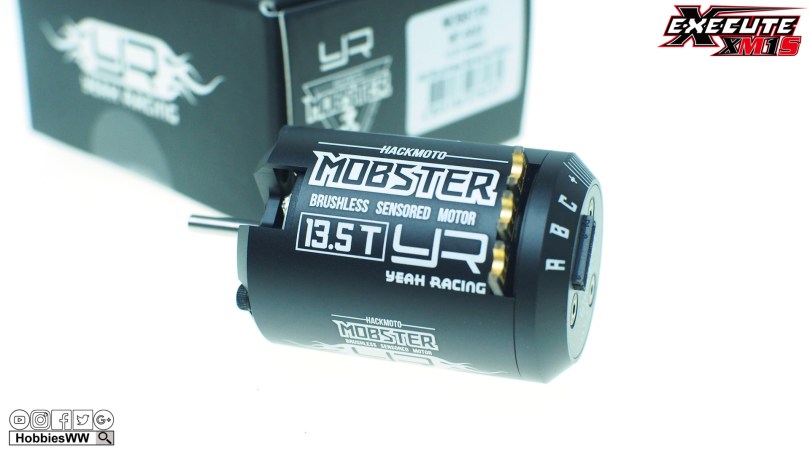

M車,足夠了! Yeah Racing MOBSTER 13.5T #MT-0023

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm130
Yeah Racing 40mm Motor風扇以及Motor風扇扣

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm131

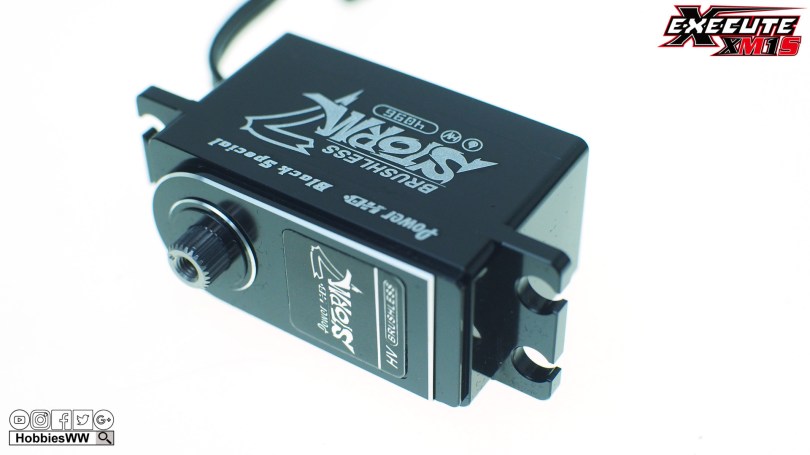

近來非常流行的Power HD STORM-7 轉向Servo

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm134
Muchmore Racing​全車黑色電線才美觀

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm132

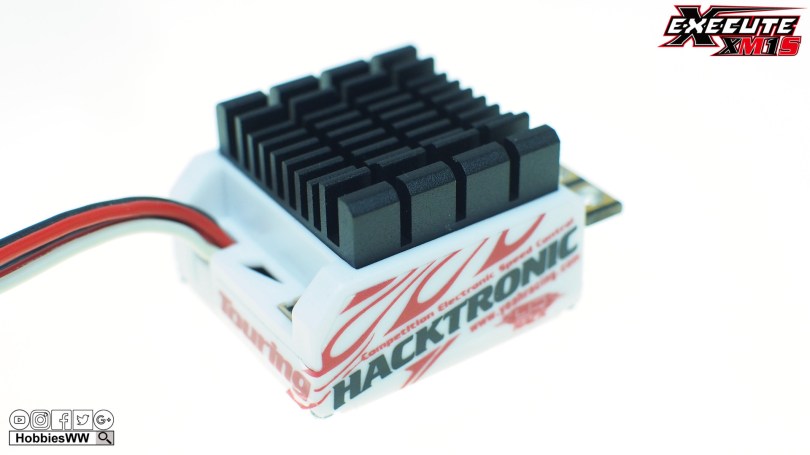

Yeah Racing Hacktronic 120A Brushless Sensored ESC 電子變速

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm133
Sanwa RX-472配MT44遙控

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm136
預算電子設備擺位

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm137
3M 雙面貼文具店有售

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm138
筆者把多出的訊號線剪掉, 之後重新夾上訊號插頭, 沒有工具不要跟我做

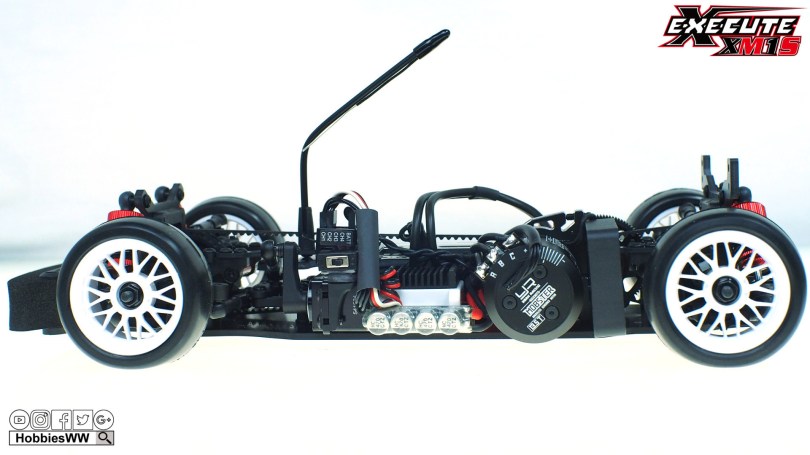

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm139
Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm144
完成電子設備擺放, 可供參考

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm140
Xpress​ 新型號車胎加菊花車呤

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm141

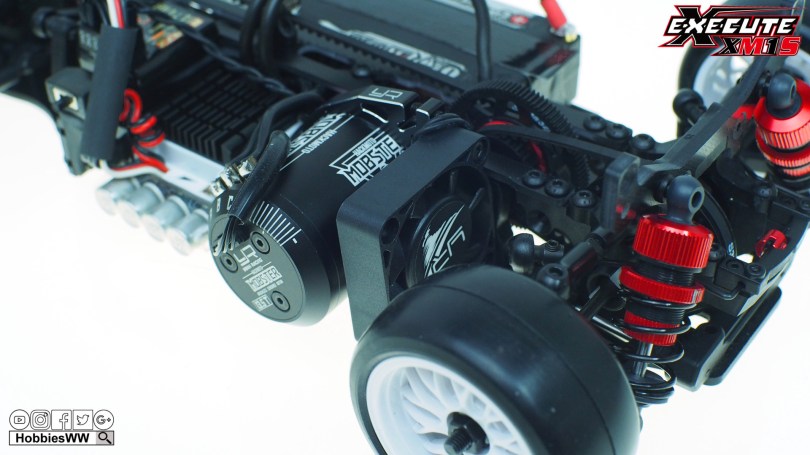

儲電電容沒有位置下的安排, 40mm風扇吹向Motor

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm142

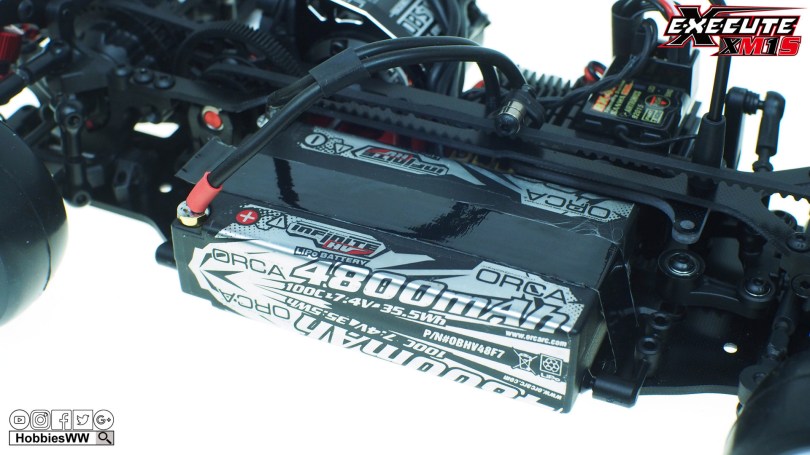

Team ORCA​短電

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm143

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm146Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm147Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm148Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm149Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm150Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm151
左右重量分佈平衡

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm152Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm153Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm154
電架螺絲可作調教, 剛好貼著固定電池

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm158
圖中圓頭螺絲, 裝上2口1mm介子, 剛好能頂著電池

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm155
調教好電池擺位完成圖

Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm156
Xpress-Execute-XM1S-1-10-4WD-Mini-Touring-Car-Kit-EP-M-Chassis-210mm157

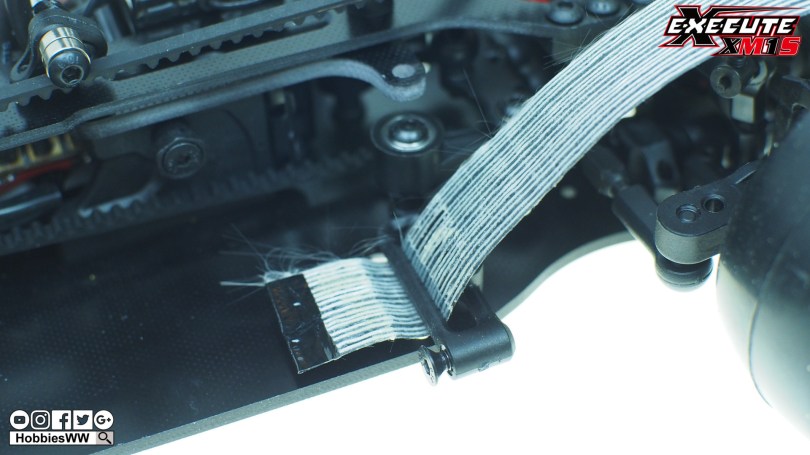

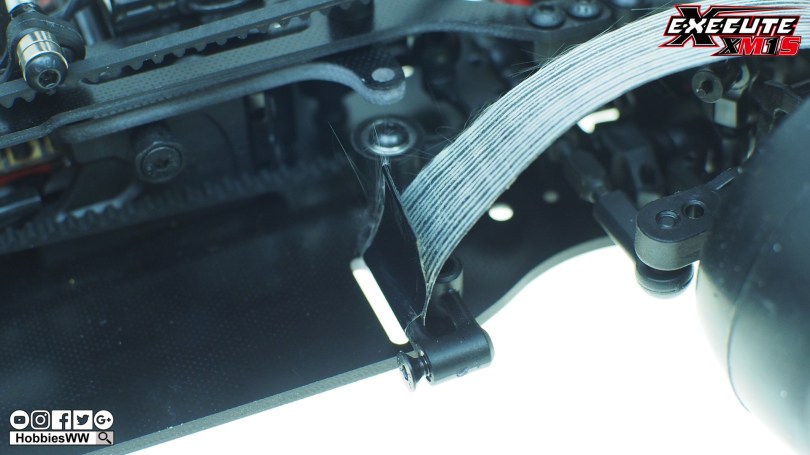

纖維膠紙密技, 留有開口位方便移除
